MWM 25H2-Kits for hydrogen admixture for MWM gas engines
MWM retrofit 25H2-Kits for gas engine series TCG 3016, TCG 3020, TCG 2032, and TCG 2032B
- Operation with hydrogen is an effective solution to cut greenhouse emissions.
- Hydrogen admixture helps to comply with laws and regulations implemented for the purpose of reducing greenhouse emissions, such as the 44th Federal Immission Control Ordinance (BImSchV) and renewable energies laws.
- New engines of the TCG 3016, TCG 3020, and TCG 2032 series are designed for natural gas operation with a hydrogen admixture of 25 vol%.
- With the MWM retrofit 25H2-Kits, which comes in two editions, existing plants with TCG 3016, TCG 3020, TCG 2032, and TCG 2032B gas engines can quickly and easily be converted for natural gas operation with a hydrogen admixture of up to 20 vol% or up to 25 vol%.
- Hydrogen admixture of 25 vol% enables an 8-percent reduction of greenhouse emissions compared to natural gas-only operation.
- Hydrogen production from renewable sources reduces greenhouse emissions, enabling more sustainable plant operation.
ON THIS PAGE
25H2-Kit for MWM TCG 3016, TCG 3020, TCG 2032 and TCG 2032B gas engines
Benefits of upgrading gas engines with the MWM retrofit 25H2-Kit
MWM 25H2-Kit for MWM TCG 3016 gas engines
MWM 25H2-Kit for MWM TCG 3020 gas engines
MWM 25H2-Kit for MWM TCG 2032 and TCG 2032B gas engines
Order the MWM 25H2-Kit
25H2-Kit for MWM TCG 3016, TCG 3020, TCG 2032 and TCG 2032B gas engines
Upgrade existing plants with MWM TCG 3016, TCG 3020, and TCG 2032 gas engines with the 25H2-Kit for hydrogen operation and long-term reduction of greenhouse emissions.
The European Union intends to achieve climate neutrality by 2050. Plant operators need to furnish evidence of their compliance with laws and regulations imposing strict emission limits. Hydrogen from renewable sources is a key element for the sustainable energy generation of tomorrow. Advanced hydrogen technology along with green hydrogen from sustainable production represents a climate-friendly alternative to fossil energy sources for distributed power generation with gas engines. MWM gas engines are ready for operation with a hydrogen admixture of up to 10 vol% without any modifications.
Within the scope of its expanded product offering in the field of hydrogen, MWM now offers TCG 3016, TCG 3020, TCG 2032, and TCG 2032B gas engines suitable for permanent operation, base load supply, and peak load operation with natural gas with a hydrogen admixture of up to 25 vol%.
New engines of the series support these hydrogen admixtures by design and are ready to use. For existing plants, MWM offers the retrofit 25H2-Kit for upgrading TCG 3016, TCG 3020, and TCG 2032 gas engines for hydrogen admixtures of up to 25 vol%.
Benefits of upgrading gas engines with the MWM retrofit 25H2-Kit
Upgrade your plant for hydrogen operation! The MWM retrofit 25H2-Kits for TCG 3016, TCG 3020, TCG 2032, and TCG 2032B gas engines facilitate the conversion and include excellent coaching by the MWM Service throughout the process.
The MWM retrofit 25H2-Kits for hydrogen admixture of up to 20 vol% and up to 25 vol% have been custom-tailored to the MWM TCG 3016, TCG 3020, TCG 2032, and TCG 2032B gas engines. By retrofitting your plant, you will be able to comply with stricter emission limits, boost your operational efficiency, and ensure your plant’s long-term economic viability.
Your benefits at a glance:
- Investment in your plant’s sustainability through use of a sustainable energy source
- Simple solution for retrofitting your plant
- Prepare now for the upcoming introduction of 25 vol% hydrogen in the natural gas grid
- Custom-tailored to MWM TCG 3016, TCG 3020 and TCG 2032 gas engines
- Regulations-compliant reduction of greenhouse emissions
- Higher operational efficiency
- Preservation of your plant’s long-term economic viability
- Intensive coaching by the MWM Service throughout the process
With the MWM 25H2-Kit for retrofitting gas engines, the engine’s gas train is replaced with a gas train that supports the use of hydrogen. Gas trains control the flow of gas through the engine. Before the gas enters the combustion chamber, it passes the gas train. There, the gas is made available with a certain pressure and temperature. An optimum gas train plays a significant role, as it contributes to the performance of the gas engine and extends its useful life.
25H2-Kit for MWM TCG 3016 gas engines
The MWM gas engines of the TCG 3016 series are offered in an output range from 400 kWel to 1,000 kWel. The series stands out with top electrical efficiencies of up to 43 percent and low gas consumption. TCG 3016 gas engines support the flexible use of various gas types. Customers who order new engines of the TCG 3016 series get a unit that is ready to use with a hydrogen admixture of up to 25 vol%. For plant operators who would like to convert their existing MWM gas engines of the TCG 3016 series for operation with a hydrogen admixture of up to 20 vol% or up to 25 vol%, MWM offers the retrofit 25H2-Kit in two variants.
Performance data of MWM TCG 3016 gas engines with hydrogen admixture
Natural gas applications with 25 vol.% hydrogen (NOX ≤ 500 mg/Nm3* / 1.0 g/bhph*)
| Engine type Configuration | TCG 3016 V08 P+ High Efficiency plus 25H2-Kit = Optimized for high electrical efficiency with 25 Vol.-% Hydrogen Kit | TCG 3016 V12 P+ High Efficiency plus 25H2-Kit = Optimized for high electrical efficiency with 25 Vol.-% Hydrogen Kit | |||
|---|---|---|---|---|---|
| 50 Hz | 60 Hz | 50 Hz | 60 Hz | ||
| Electrical output | kW | 400 | 400 | 600 | 600 |
| Thermal output ± 8% | kW | 403 | 423 | 614 | 637 |
| Electrical efficiency** | % | 42.8 | 41.9 | 43.0 | 42.4 |
| Thermal efficiency | % | 43.1 | 44.4 | 44.1 | 45.0 |
| Total efficiency | % | 85.9 | 86.3 | 87.1 | 87.4 |
| Power to heat ratio *** | 0.99 | 0.94 | 0.98 | 0.94 | |
| Engine type Configuration | TCG 3016 V16 P+ High Efficiency plus 25H2-Kit = Optimized for high electrical efficiency with 25 Vol.-% Hydrogen Kit | TCG 3016 V16 S+ High Density plus 25H2-Kit = Increased power densitiy with 25 Vol.-% Hydrogen Kit | ||
|---|---|---|---|---|
| 50 Hz | 60 Hz | 50 Hz | ||
| Electrical output | kW | 800 | 800 | 1000 |
| Thermal output ± 8% | kW | 816 | 848 | 1092 |
| Electrical efficiency** | % | 43.3 | 42.2 | 41.5 |
| Thermal efficiency | % | 44.2 | 45.1 | 45.7 |
| Total efficiency | % | 87.5 | 87.3 | 87.2 |
| Power to heat ratio *** | 0.98 | 0.94 | 0.91 | |
* With 5% O2 and dry exhaust gas
** According to ISO 3046-1
*** The power-to-heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please remember that this is a theoretical value that may deviate from actually measured values.
The data in this chart are for information only and are not binding. The information given in the offer is decisive. Further generator set variants are available with different generators.
Content: MWM 25H2-Kit for TCG 3016 gas engines
The MWM retrofit 25H2-Kit is offered for the TCG 3016 gas engine series. The kit enables all natural gas models of the series to be retrofitted for natural gas operation with a hydrogen admixture of 10 to 25 vol%.
- H2-capable gas trains (zero pressure and inlet pressure)
- Inlet manifold (cylinder with individual 0.7 mm flame arresters)
- Wastegate (needed for V08 and V12)
- Software: TPEM 1.8.2 (optimized ignition parameters)
- Turbocharger (optional nozzle ring replacement)
One flame arrester per cylinder, which was custom-designed for use with hydrogen admixtures to ensure safe operation of the gas engine.

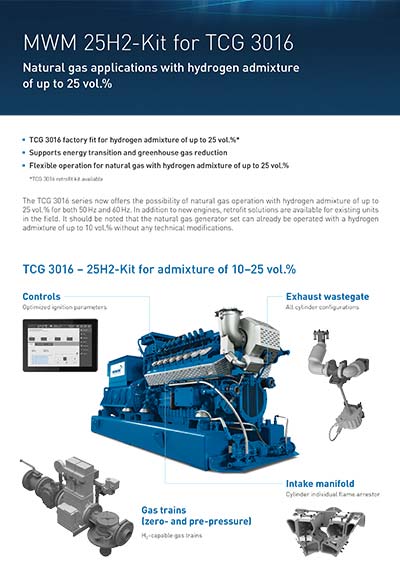

Brochure: MWM 25H2-Kit for TCG 3016 gas engines
The brochure for MWM TCG 3016 gas engines shows the parts and components included in the retrofit 25H2-Kit for a hydrogen admixture of up to 25 vol%.
Download PDF: EN | DE | CN | ES | FR | NL | RU
25H2-Kit for MWM TCG 3020 gas engines
MWM TCG 3020 gas engines are offered in an output range from 1,380 to 2,300 kWel. The series is suitable for flexible use in various application scenarios and with various gas types and stands out with extremely low oil consumption and high levels of efficiency. Customers who order new engines of this series get a unit that is ready for flexible use with hydrogen. MWM offers the 25H2-Kit for plant operators who want to retrofit their existing plant with an MWM TCG 3020 gas engine for natural gas operation with a hydrogen admixture of up to 25 vol%.
Performance data of MWM TCG 3020 gas engines with hydrogen admixture
Natural gas applications with 25 vol.% hydrogen (NOX ≤ 500 mg/Nm3* / 1.0 g/bhph*)
| Engine type Configuration | TCG 3020 V12 P+ High Efficiency plus 25H2-Kit = Optimized for high electrical efficiency with 25 vol.% hydrogen kit | TCG 3020 V12 R+ High Response plus 25H2-Kit = Optimized for high total efficiency with 25 vol.% hydrogen kit | |
|---|---|---|---|
| Electrical power** | kW | 1,380 | 1,380 |
| Electrical efficiency** | % | 44.6 | 43.9 |
| Thermal efficiency (±8 %) | % | 42.5 | 43.6 |
| Total efficiency | % | 87.1 | 87.5 |
| Power to heat ratio *** | 1.05 | 1.00 | |
| Engine type Configuration | TCG 3020 V16 P+ High Efficiency plus 25H2-Kit = Optimized for high electrical efficiency with 25 vol.% hydrogen kit | TCG 3020 V16 R+ High Response plus 25H2-Kit = Optimized for high total efficiency with 25 vol.% hydrogen kit | |
|---|---|---|---|
| Electrical power** | kW | 1,840 | 1,840 |
| Electrical efficiency** | % | 44.6 | 43.6 |
| Thermal efficiency (±8 %) | % | 42.6 | 43.9 |
| Total efficiency | % | 87.2 | 87.5 |
| Power to heat ratio *** | 1.05 | 0.99 | |
| Engine type Configuration | TCG 3020 V20 P+ High Efficiency plus 25H2-Kit = Optimized for high electrical efficiency with 25 vol.% hydrogen kit | TCG 3020 V20 R+ High Response plus 25H2-Kit = Optimized for high total efficiency with 25 vol.% hydrogen kit | |
|---|---|---|---|
| Electrical power** | kW | 2,300 | 2,300 |
| Electrical efficiency** | % | 44.6 | 43.6 |
| Thermal efficiency (±8 %) | % | 42.6 | 43.9 |
| Total efficiency | % | 87.2 | 87.5 |
| Power to heat ratio *** | 1.05 | 0.99 | |
| Engine type Configuration | TCG 3020 V20 PV+ High Efficiency for Requested Power plus 25H2-Kit = Optimized for high electrical efficiency at requested power with 25 vol.% hydrogen kit | TCG 3020 V20 RV+ High Response for Requested Power plus 25H2-Kit = Optimized for high total efficiency at requested power with 25 vol.% hydrogen kit | |
|---|---|---|---|
| Electrical power** | kW | 2,000 | 2,000 |
| Electrical efficiency** | % | 44.0 | 43.3 |
| Thermal efficiency (±8 %) | % | 43,6 | 44,6 |
| Total efficiency | % | 87.6 | 87.9 |
| Power to heat ratio *** | 1.01 | 0.97 | |
* With 5% O2 and dry exhaust gas
** According to ISO 8528-1
*** The power-to-heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please remember that this is a theoretical value that may deviate from actually measured values.
The data in this chart are for information only and are not binding. The information given in the offer is decisive. Further generator set variants are available with different generators.
Content: MWM 25H2-Kit for TCG 3020 gas engines
The MWM retrofit 25H2-Kit is offered for the TCG 3020 gas engine series. The kit enables all natural gas models of the series to be retrofitted for natural gas operation with a hydrogen admixture of 10 to 25 vol%.
- H2-capable gas trains (zero pressure and inlet pressure)
- Explosion vent (safe operation with hydrogen)
- Inlet manifold (cylinder with individual 0.7 mm flame arresters)
- Software: TPEM 1.8.2 (optimized ignition parameters)
- Turbocharger (optional nozzle ring replacement)
One flame arrester per cylinder, which was custom-designed for use with hydrogen admixtures to ensure safe operation of the gas engine.

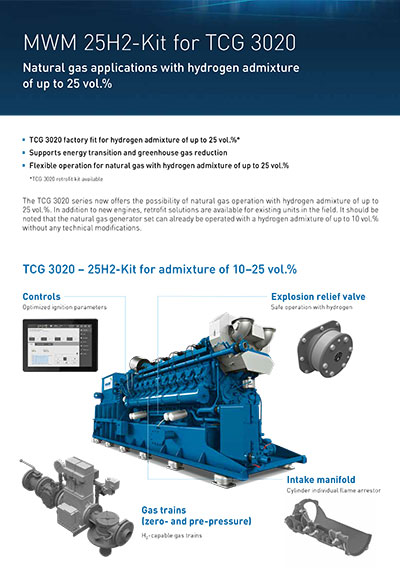

Brochure: MWM 25H2-Kit for TCG 3020 gas engines
The brochure for MWM TCG 3020 gas engines shows the parts and components included in the retrofit 25H2-Kit for a hydrogen admixture of up to 25 vol%.
Download PDF: EN | DE | CN | ES | FR | NL | RU

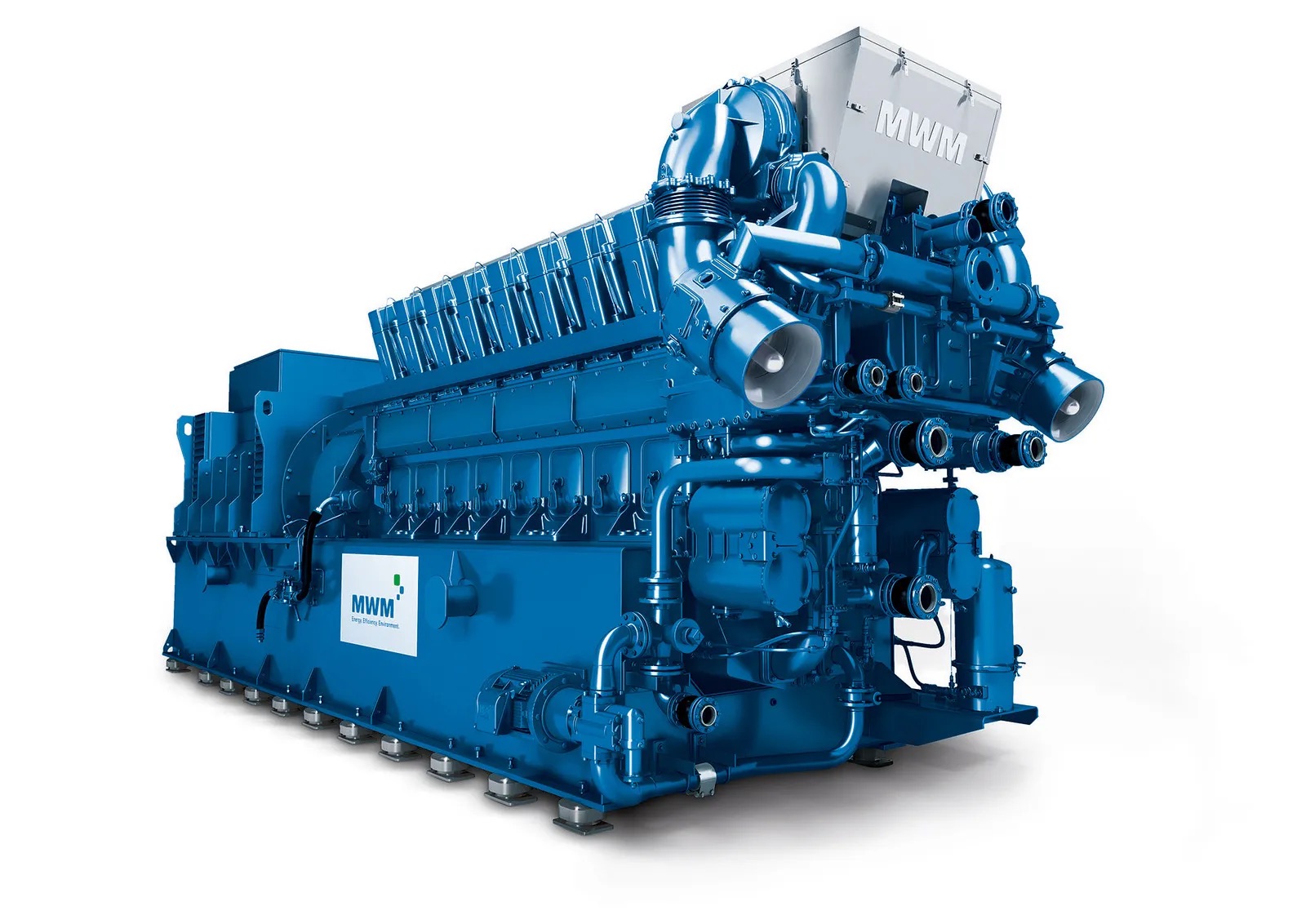

25H2-Kit for MWM TCG 2032 and 2032B gas engines
The MWM TCG 2032 series stands out with high reliability and low maintenance costs.The TCG 2032 and 2032B gas engines in an output range of 3,000 to 4,500 kWel can be used with various gas types. Customers who order a new engine get a gas engine that is ready for operation with a hydrogen admixture of up to 25 vol%. MWM offers the 25H2-Kit for plant operators who want to retrofit their existing plant with a TCG 2032 or 2032B gas engine for natural gas operation with a hydrogen admixture of up to 25 vol%.
Performance data of MWM TCG 2032 and TCG 2032B gas engines with hydrogen admixture
Natural gas applications with 25 vol.% hydrogen (NOX ≤ 500 mg/Nm3* / 1.0 g/bhph*)
| TCG 2032 V12 R+ High Response plus 25H2-Kit = Optimized for high total efficiency with 25 vol.% hydrogen kit | |||
|---|---|---|---|
| Engine type | 50 Hz | 60 Hz | |
| Electrical output*** | kW | 3,333 | 3,000 |
| Electrical efficiency | % | 43.7 | 43.7 |
| Thermal efficiency** (±8 %) | % | 42.7 | 42.1 |
| Total efficiency | % | 86.4 | 85.8 |
| Power to heat ratio**** | 1.02 | 1.03 | |
| TCG 2032 V16 R+ High Response plus 25H2-Kit = Optimized for high total efficiency with 25 vol.% hydrogen kit | TCG 2032B V16 R+ High Response plus 25H2-Kit = Optimized for high total efficiency with 25 vol.% hydrogen kit | ||||
|---|---|---|---|---|---|
| Engine type | 50 Hz | 60 Hz | 50 Hz | 60 Hz | |
| Electrical output*** | kW | 4,300 | 4,000 | 4,500 | 4,050 |
| Electrical efficiency | % | 44.0 | 43.8 | 44.5 | 44.3 |
| Thermal efficiency** (±8 %) | % | 42.8 | 42.5 | 43.3 | 42.7 |
| Total efficiency | % | 86.8 | 86.3 | 87.8 | 87.0 |
| Power to heat ratio**** | 1.03 | 1.03 | 1.03 | 1.04 | |
* With 5% O2 and dry exhaust gas
** Cooling down of the exhaust gas to 120°C with natural gas
*** According to ISO 3046-1
**** The power-to-heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please remember that this is a theoretical value that may deviate from actually measured values.
The data in this chart are for information only and are not binding. The information given in the offer is decisive. Further generator set variants are available with different generators.
Content: MWM 25H2-Kit for TCG 2032 and TCG 2032B gas engines
The MWM 25H2-Kit is offered for the TCG 2032 gas engine series. The kit enables all natural gas models of the series to be retrofitted for natural gas operation with a hydrogen admixture of 10 to 25 vol%.
- H2-capable gas trains (zero pressure and inlet pressure)
- Explosion vent (safe operation with hydrogen)
- Software-optimized ignition parameters
- Turbocharger (optional nozzle ring replacement)
The explosion vent ensures safe, optimum operation of the gas engine with hydrogen admixture.

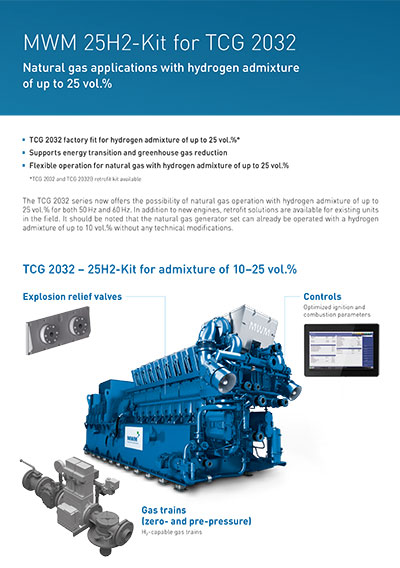

Brochure: MWM 25H2-Kit for TCG 2032 and TCG 2032B gas engines
The brochure for MWM TCG 2032 gas engines shows the parts and components included in the retrofit 25H2-Kit for a hydrogen admixture of up to 25 vol%.
Order MWM 25H2-Kit
Order your MWM 25H2-Kit in the service shop or contact your service partner.
For general inquiries concerning service products, contact: serviceproducts@mwm.net

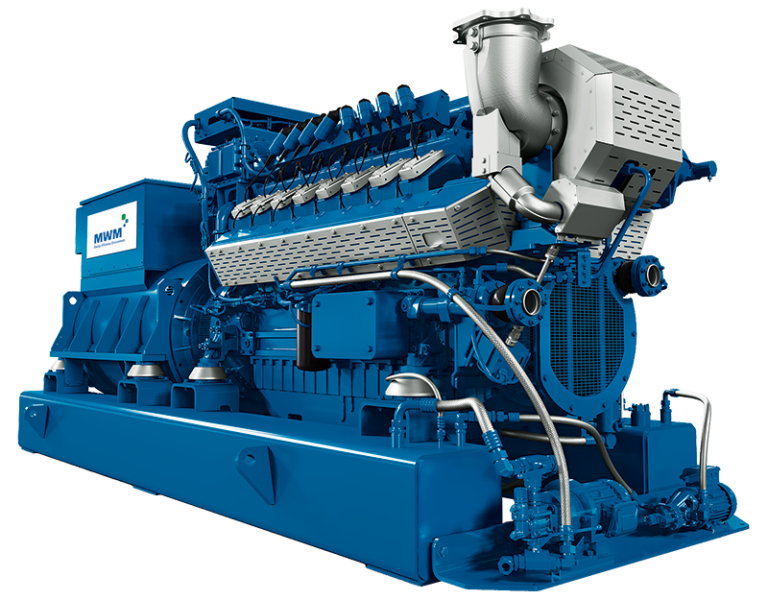

Gas Engine TCG 3016
